TPA3116D2 2.1channel class d Bluetooth amplifier module / version 3.0

FOB Reference Price:Get Latest Price
US $1-23 / Pieces | 1 Piece/Pieces bluetooth amplifier module (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
NFJ&FXAUDIO
Model Number:
S-BL-AMP2 (TPA3166)
Type:
Professional Amplifier
Channels:
2 (2.0)
Place of Origin:
Guangdong, China (Mainland)
Product Name:
bluetooth amplifier module
Chipset:
TPA3116D2+NE5532
Application:
amplifier
Warranty:
1 Year
Size:
135x67x26mm
Voltage:
9-26V 3-4A
Channel:
2.0ch
output:
50W(L) + 50W(R) + 100W(Bass)
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month class d power amplifier module
Packaging & Delivery
Packaging Details
TPA3116D2 2.1channel class d Bluetooth amplifier module / version 3.0
Static bag /PC
Carton box
Port
HongKong/ShenZhen
Lead Time :
Shipped in 3 days after payment

TPA3116D2  2.1channel class d  Bluetooth amplifier module / version 3.0

Product Description

bluetooth amplifier module techical data specification

Chipset: : TPA3116D2( digital amplifier IC chipset) +PT2313 (Tone module)+ NE5532 2(Bluetooth 3.0 Module)
Channel:2.0 ch
PCB motherboard size: 135x67x26mm (not inculding the dimensions of the protrusions)
Voltage: 9-26V 3-4A, Suggest 19-24V/ 4-5A if the high power ouput
Sensitivity: 500mV
Frequency Reponse: 20Hz-20KHz,
Resistance:
R/L output: 3.5-8ohm,Bass output: 2-8ohm
Output(max):
50W(L) + 50W(R) + 100W(Bass)
R/L output power
DC12V/10+10W(8ohm)/>15+15W(4ohm)
15V/15+15W(8ohm)/>25+25W(4ohm)

19V/23+23W(8ohm)/>40+40W(4ohm)

22-24V/>32+32W(8ohm)/ >50+50W(4ohm)
Bass output power:
12V/ 10W(8ohm)/ >19W(4ohm)/>22W(3ohm)/>30W(2ohm)

15V/>15W(8ohm)/>29W(4ohm)/>39W(3ohm)/>50W(2ohm)

19V/>24W(8ohm)/>48W(4ohm)/>60W(3ohm)/>75W(2ohm)

24V/>38W(8ohm)/>75W(4ohm)/>95W(2-3ohm)

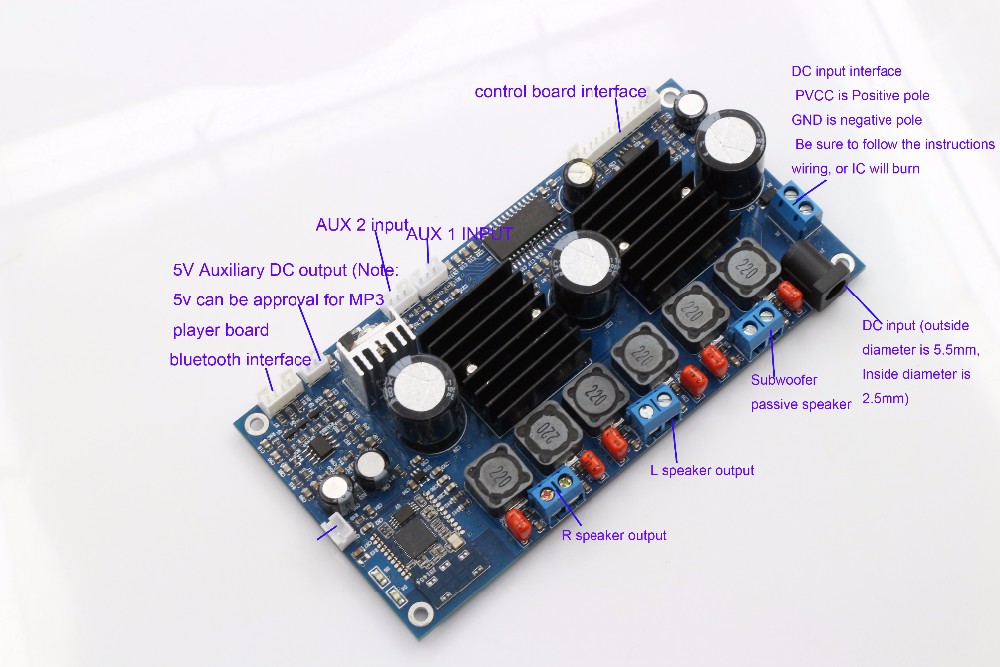

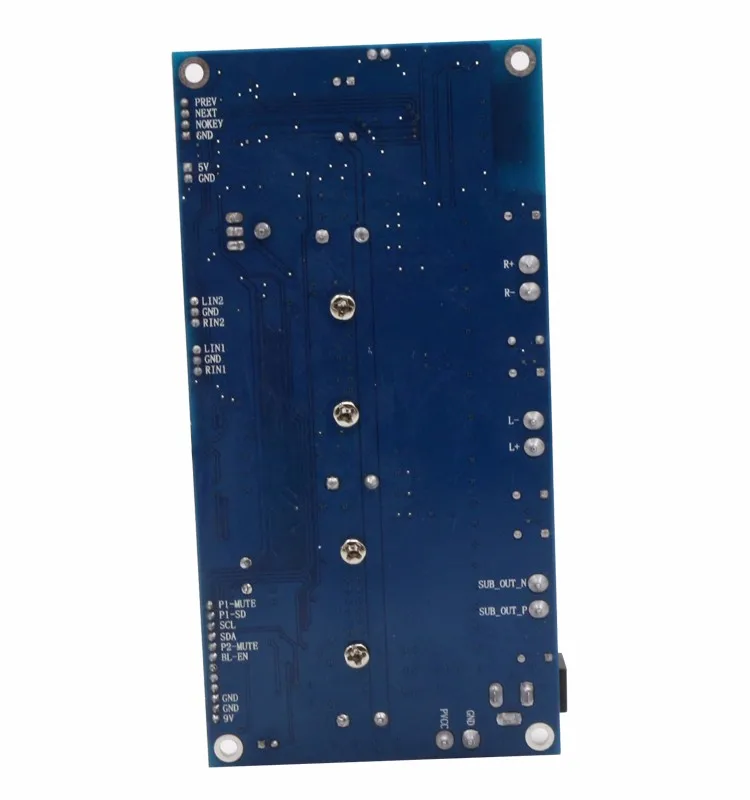

The class d power amplifier module photos of different size as following



TPA3116D2 instruction.jpg







Company Information

Shenzhen Fly Dream digital Technology Co.ltd  was founded in 2009 with self-owned brand FX-audio,is a professional manfacturer which specializes in producing power audio amplifier, headphone amplifier,preamp amplifier, audio decoder,bluetooth audio receiver,module series and has been engaged in this filed over 7years view details.jpg

.jpg

Basic Information

Product service(we sell)power audio amplifier, headphone amplifier,preamp amplifier, audio decoder,module series
Number of employees 51-100people

Trade &Market

Main makrets

Eastern Europe

Southeast Asia

South America

Mid East

Northern Europe

South Asia

Oceania

Africa

Southern Europe

Eastern Asia

North America

Western Europe

Domestic Market



Total Annual Sales Volume



About US$100 Million



Export Percentage 60%-80%

Factory Information

Factory Size (Sq.meters)  500-1000 square meters
Factory Locations Room 707,Shangtang Complex Building,The intersection of Gongye road and zhonghuan Road,Minzhi,Longhua Distrcit SZ,CN
Number of production lines
Number of R&D staff 5-10 People
Number of QC staff 5-10 People
Contract Manufaturing

OEM/ODM Service offered

Buyer Lable and Logo offered

CE/ROHS Certifcated is approval



FAQ

Q1 :How long has your company been founded?

A1: Fly Dream Digital Technology Co.,Ltd was founded  in 2009 with self-owned brand with FX-Audio ,which has been engaged in this filed for 7 years



Q2:What is your MOQ?

A2: Our MOQ is based on your requirement,The specific MOQ is determined through negotiation



Q3:What should I do when I ready to start a business?

A3: You’d better place the order via Trade Assurance order on Alibaba,Which your payment can be assured,

Not only trade assurance order can be accepted,but also Paypal and Western Union



Q4What I supposed to do when I move forward the order via trade Assurance

A4:All i need to do is to draft a Trade Assurance Order on Alibaba and then send the link to you,by which you can confirm the order and make payment via T/T, Credit card or E-checking into the account of Citibank designated by Alibaba,In short,you only need to confirm the order and make the payment,while i will be responsible for subsequent matters such as delivery,customs,clearance and logistics



Q5How long is the warranty period

A5: The warranty period is 1 year as from the date of invoice

Our Services

1.In the precondition of non-artificial damage,product can be repaired for free under conditions within 1 month after sale,we will responsible for all charges

2. In the precondition of non-artificial damage,product can be reqaired for free under conditions within 1 year after sale,The freigtage should be paid by both parties

3.Maintenance service can still be provided after the warranty period,while the freightage should be paid only by customer
